Guideway V Rack Drive System - Size 20
价格：元

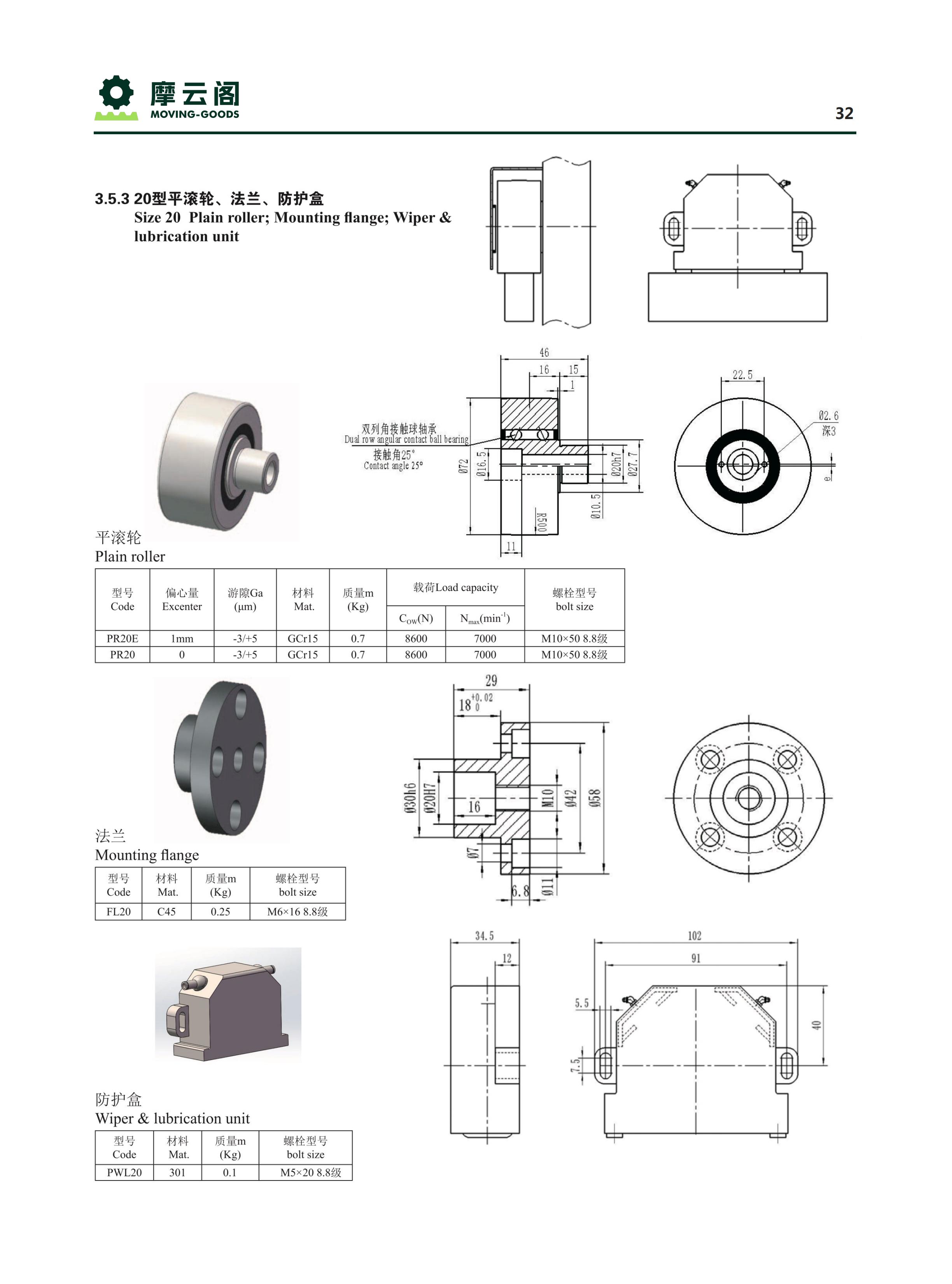

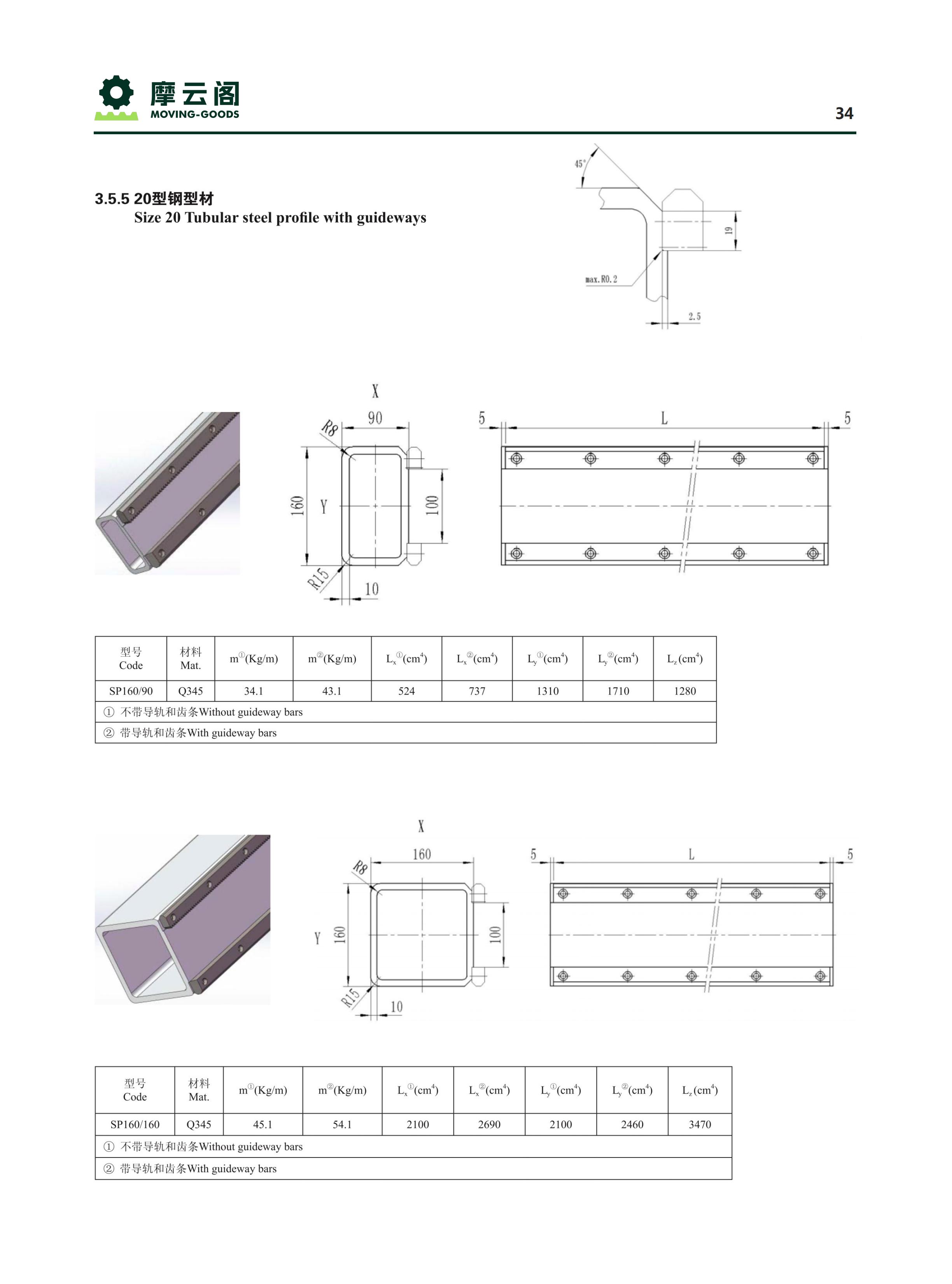

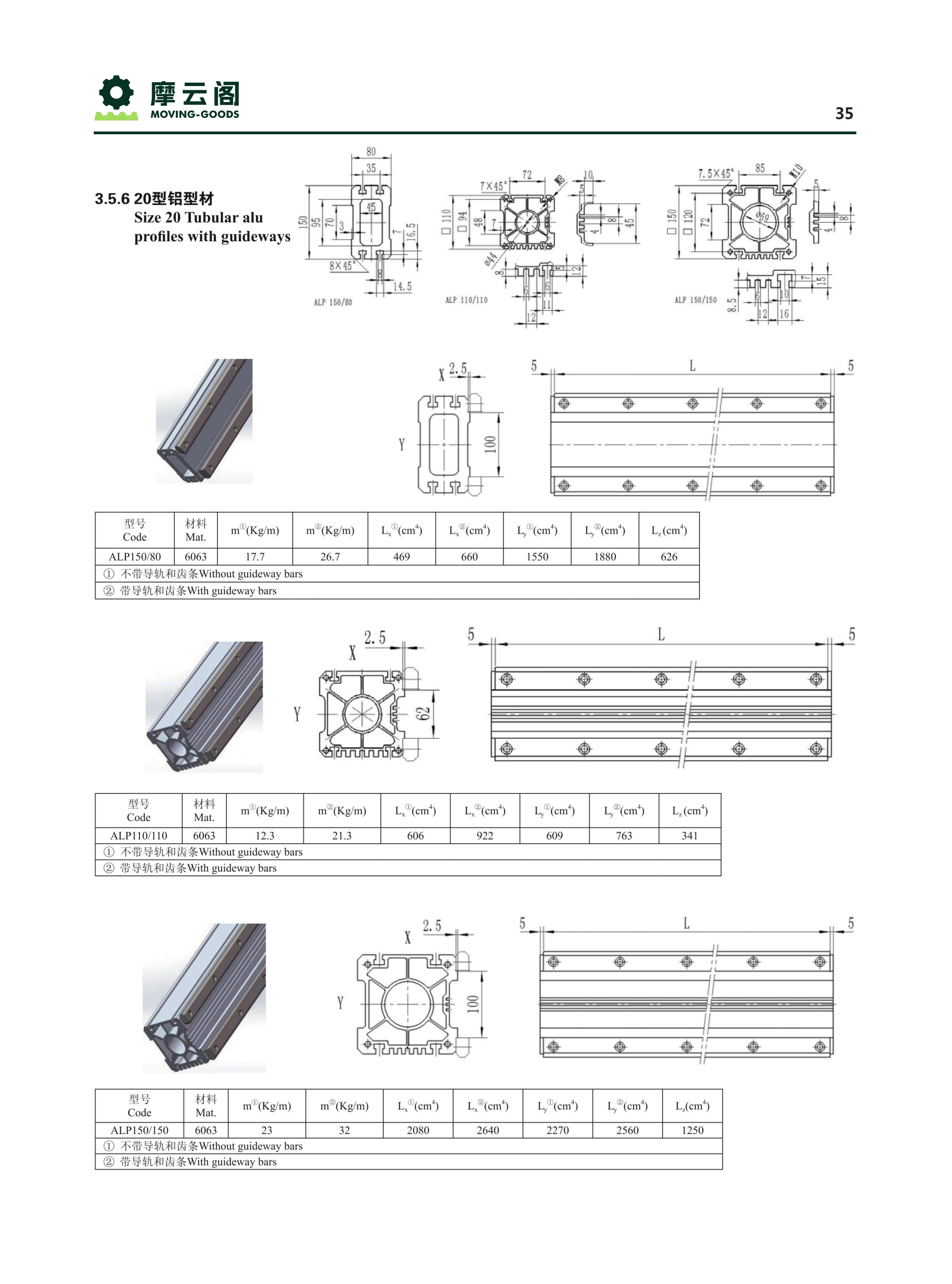

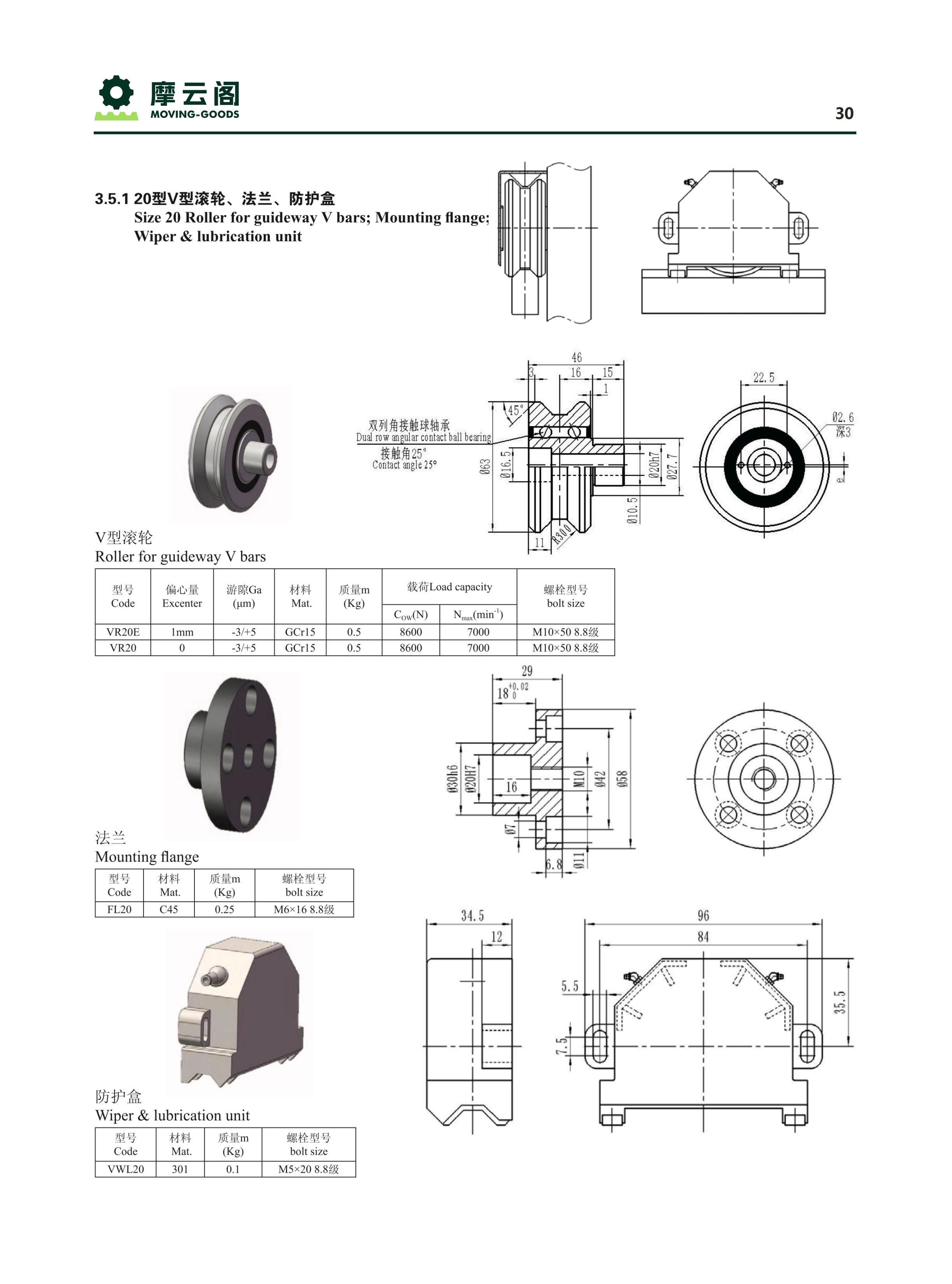

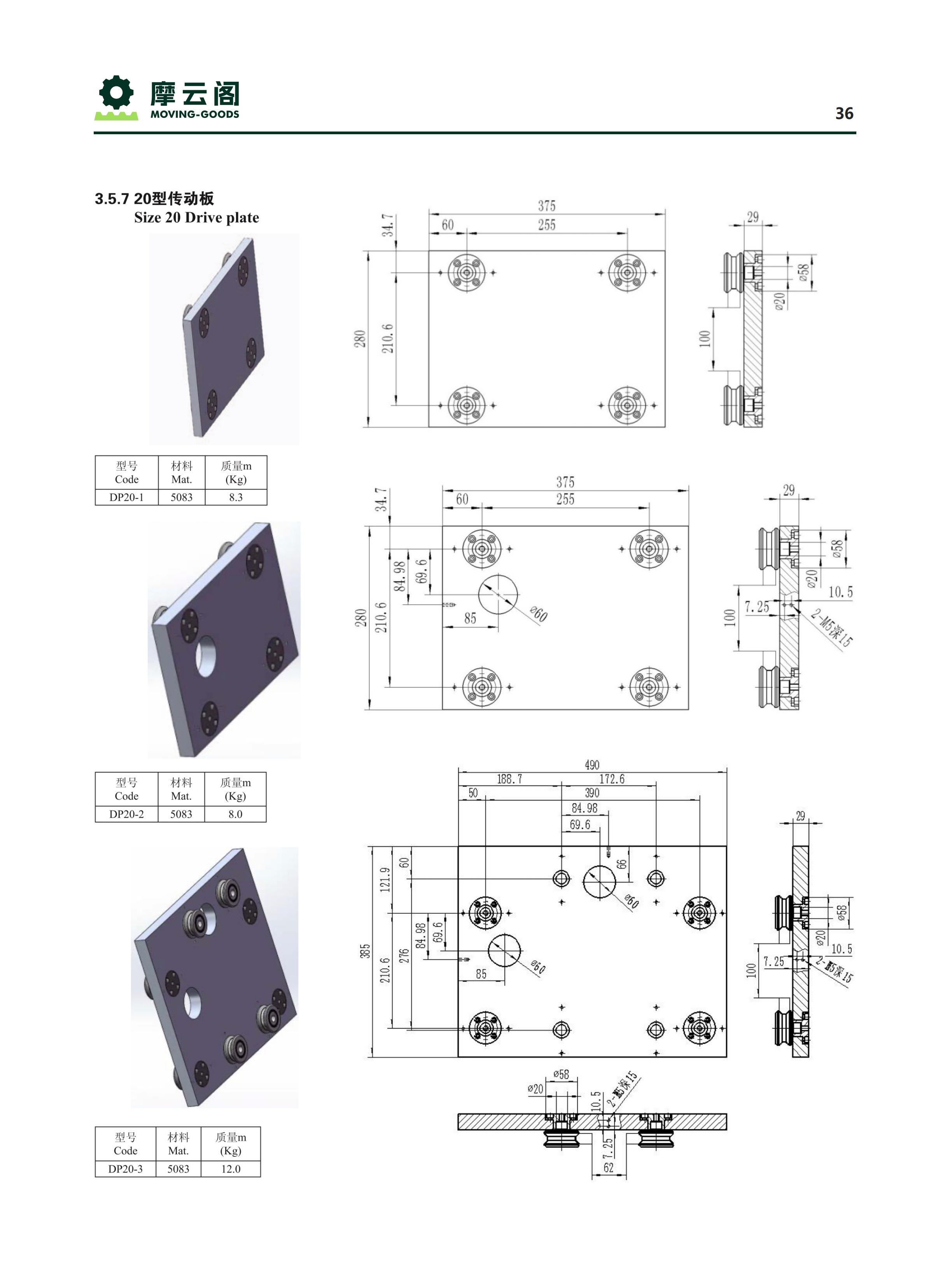

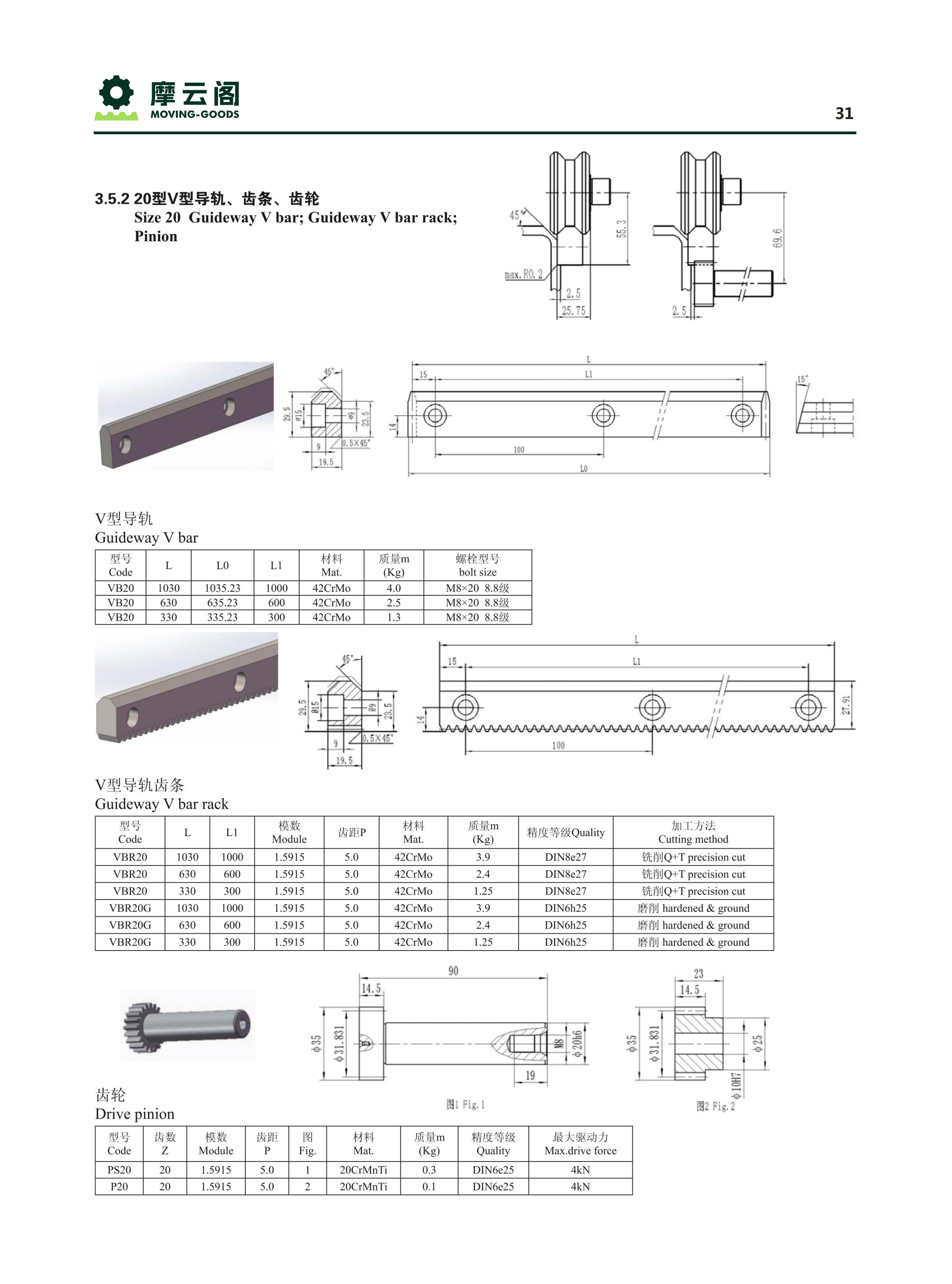

The Guideway V Rack Drive System consists of modular components such as guideway vee bars, guideway vee racks, rollers, drive plate, aluminum profile, steel profile, etc. Such system is suitable for medium duty applications. The contact between the roller and the guideway is linear with low friction, ensuring high speed, low noise and precise positioning.

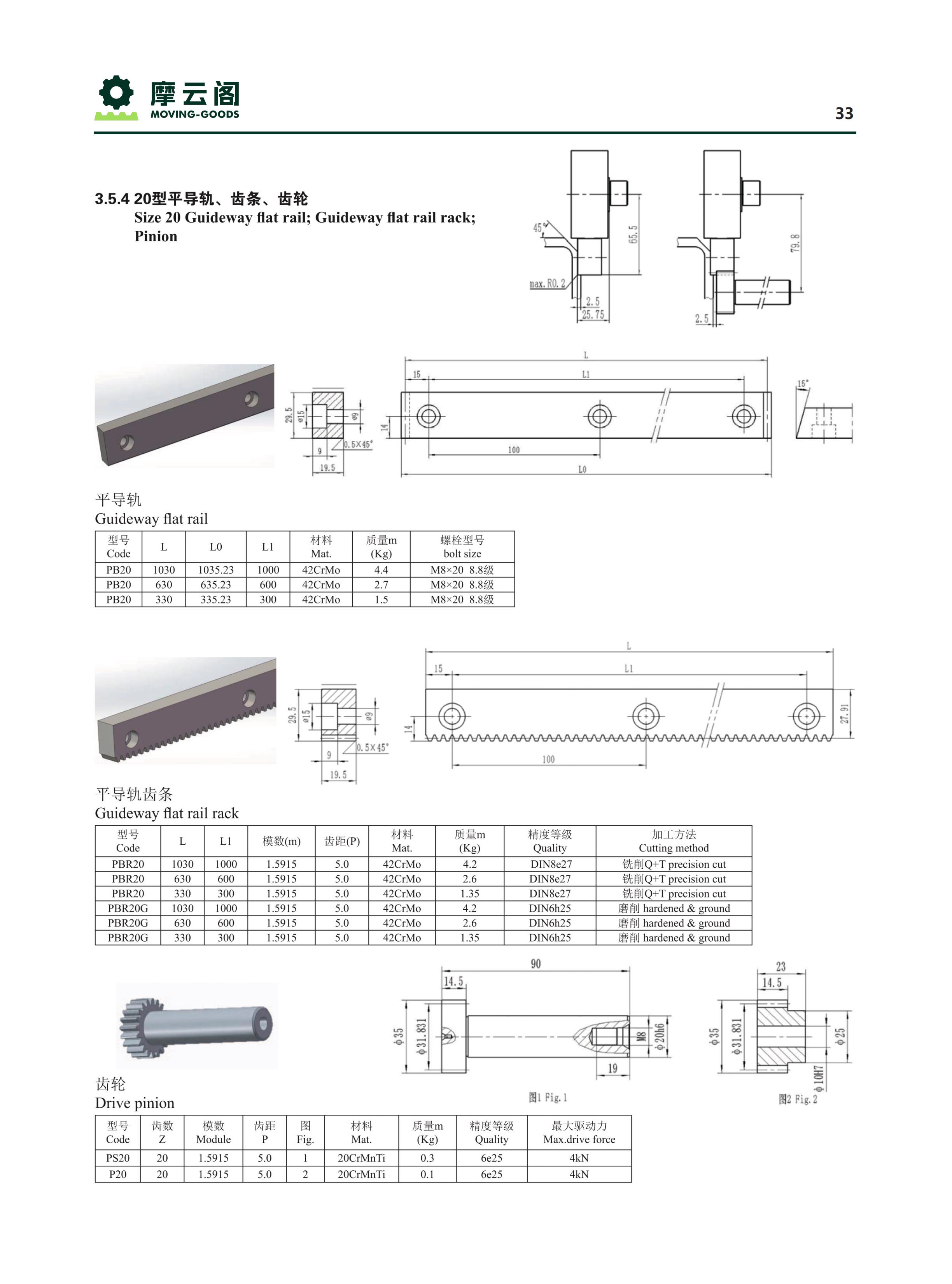

To avoid cumulative pitch tolerance due to pi (π), all racks adopt CP rack design. Milled racks to DIN8e27 and ground racks to DIN6h25 with tooth hardened to HRC55-60 are available. The guideways are induction hardened to HRC55-60.
