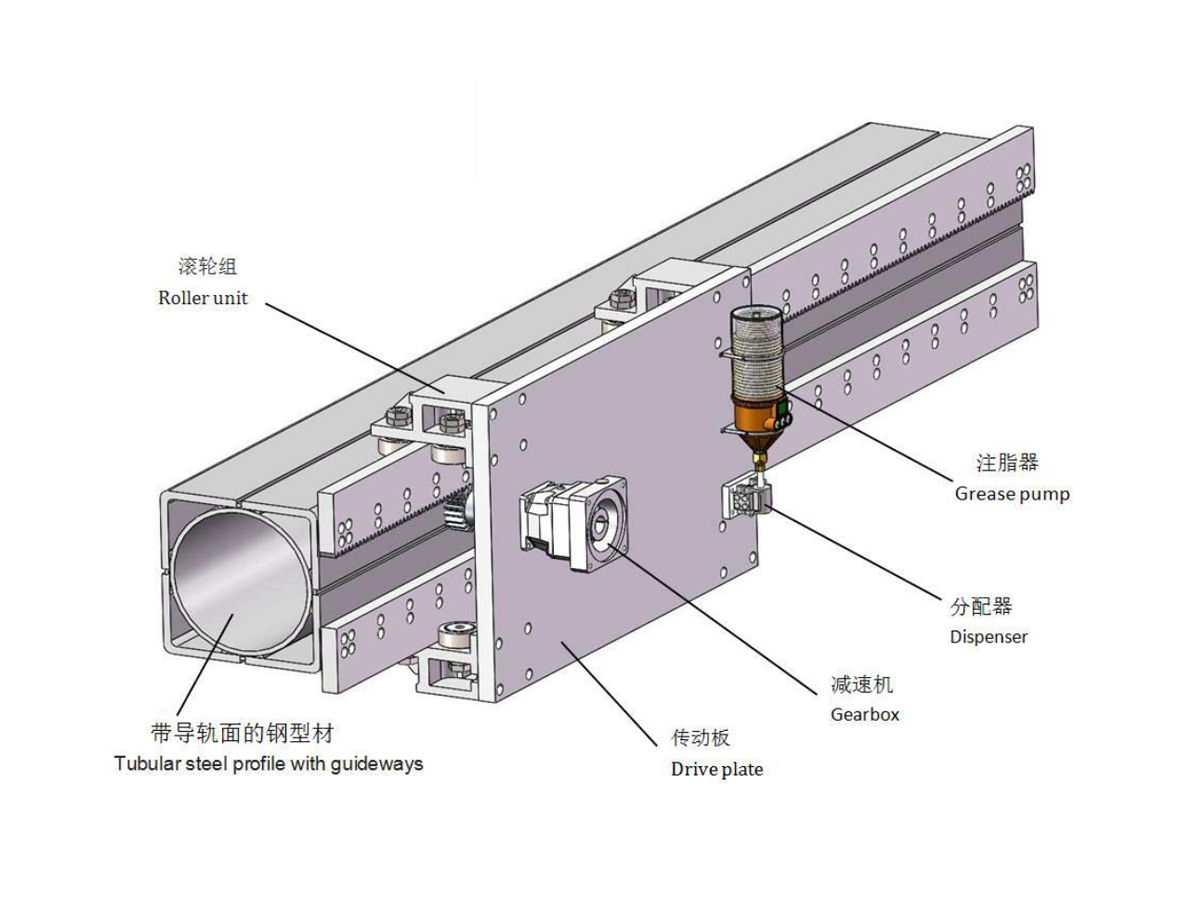

The Guideway Flat Rail Rack Drive System consists of modular components such as guideway flat rail, guideway flat rail rack, rollers support, drive plate, aluminum profile, steel profile, etc. Such system is suitable for heavy duty applications. It can be used for heavy duty gantry robots, as well as travelling tracks for robots.
Our standard models include sizes of Ø40, Ø52, Ø62, Ø72 and Ø90, and special sizes can be customized. To avoid cumulative pitch tolerance due to pi (π), all racks adopt CP rack design. Milled racks to DIN8e27 and ground racks to DIN6h25 with tooth hardened to HRC55-60 are available. The guideways are induction hardened to HRC55-60.
